CM-X9-9616-110KV-D40-CW/ CCW

SKU: MOT-9616-001

803,00 zł

Secure payment: Apple Pay, Google Pay, BLIK (Poland), Proforma Invoice (bank transfer) and credit/debit cards (Visa/Mastercard).

Processing time: Orders are shipped within 1–2 business days.

Delivery time (Poland): 1–2 business days (InPost).

Delivery time (Europe): 3–7 business days (Nova Post).

Shipping cost: Calculated at checkout (from 11 PLN).

CM-X9-9616-110KV-D40-CW/ CCW

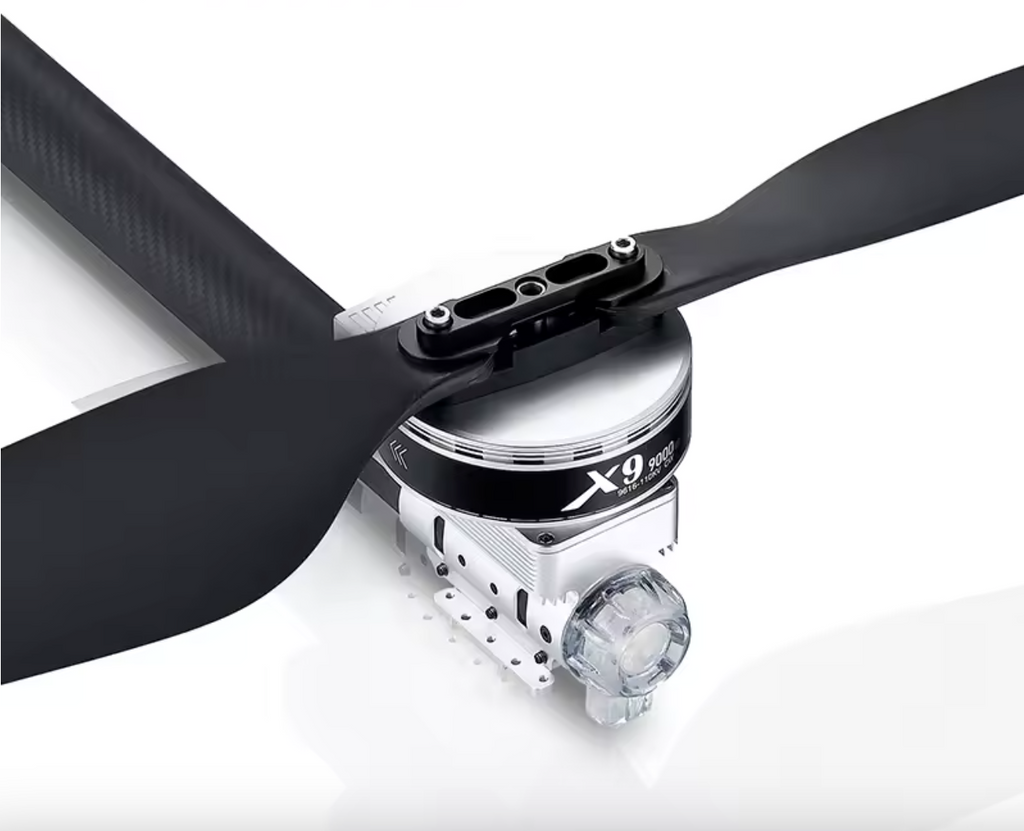

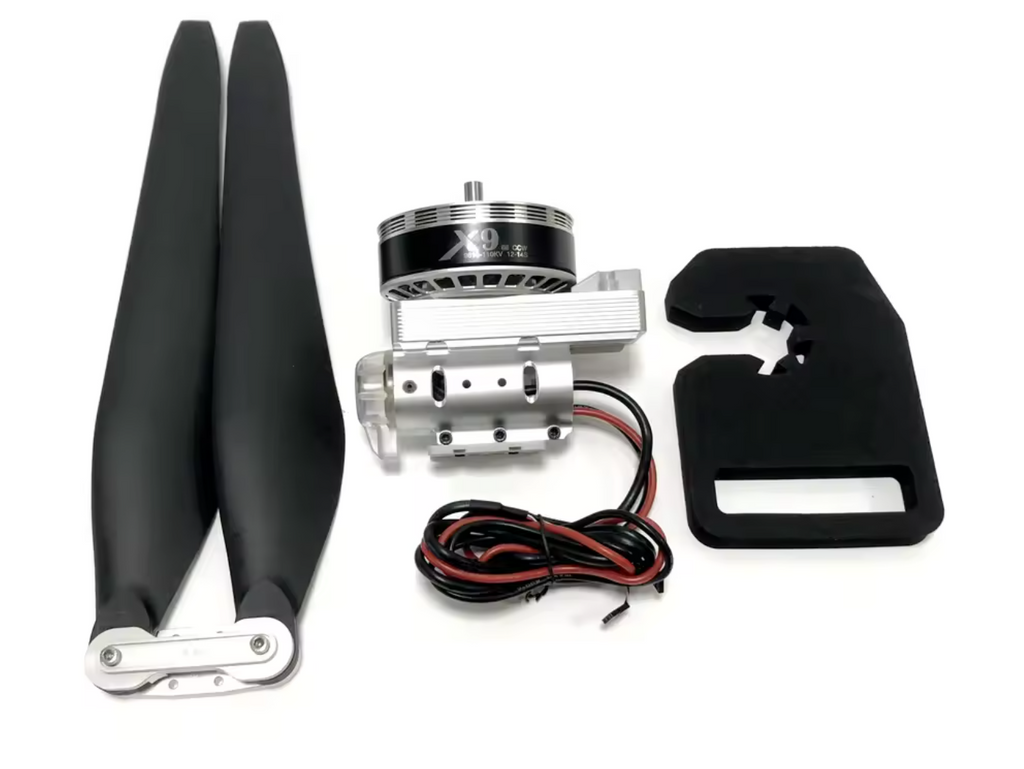

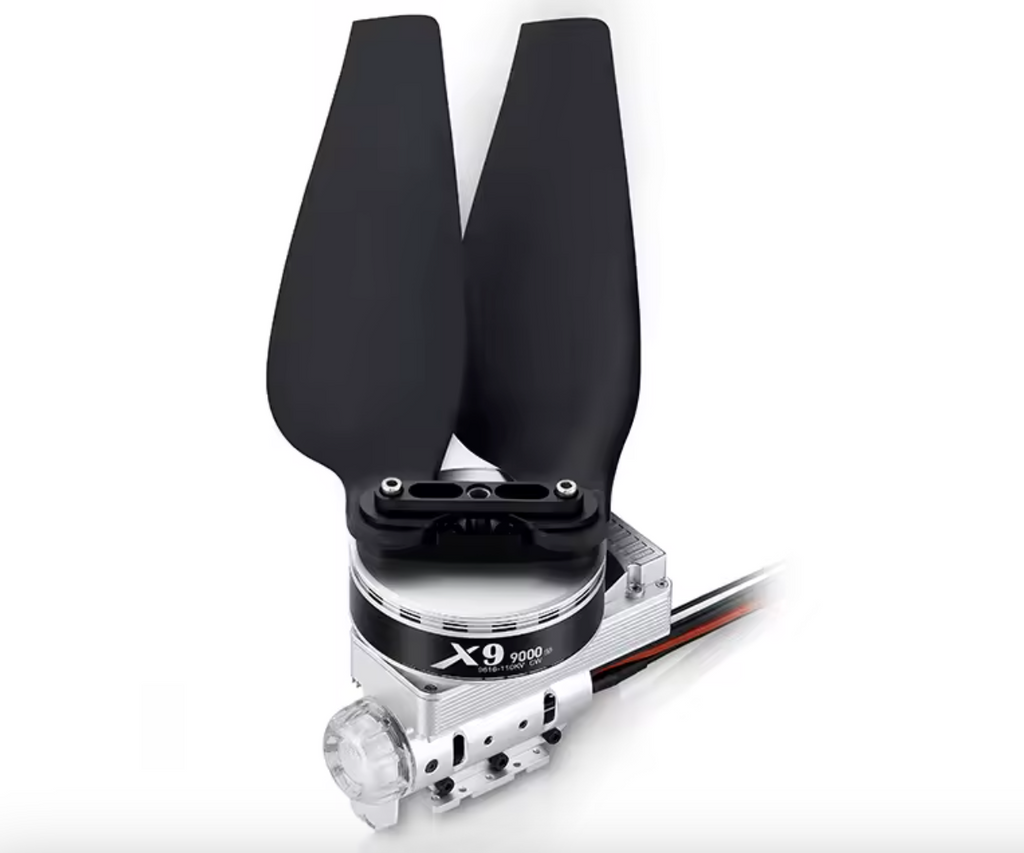

The CM-X9-9616-110KV-D40-CW is a high-performance brushless motor system designed for large multirotor drones requiring serious thrust and stability. With a stator size of 96×16 mm and KV rating of 110 KV, this motor is paired with a carbon fiber tube mount of outer diameter 40 mm, making it suitable for heavy-lift applications or long-endurance platforms. It is built with waterproof bearings and optimized for heavy duty operation under demanding environments. Ideal when you need high thrust per axis, robust power delivery, and a reliable motor system tailored for big rigs.

Stator size:96×16 mm
KV rating:110 KV
Compatible tube diameter:φ40 mm
Waterproof bearing:yes (imported waterproof bearing)
Recommended battery configuration:12-14 S LiPo (for the system version)
Maximum thrust (system version):up to approx. 19.2 kg per axis at ~46 V sea level
Operating temperature:approx. –20 °C to 55 °C
Protection rating:IPX6/7 (depending on version)
Mounting configuration:large scale rotor arms using tube φ40 mm
Use case:agricultural multirotors, heavy‐lift drones, large payload platforms
