CM-X9 Plus-9620-100KV-D40-CW/ CCW
  • CM-X9 Plus-9620-100KV-D40-CW/ CCW
  • CM-X9 Plus-9620-100KV-D40-CW/ CCW
  • CM-X9 Plus-9620-100KV-D40-CW/ CCW
  • CM-X9 Plus-9620-100KV-D40-CW/ CCW
CM-X9 Plus-9620-100KV-D40-CW/ CCW
Motors
SKU: MOT-9620-001
950,00 zł
Kierunek obrotów
Payment & Delivery
  • We accept Apple Pay, Google Pay and all major credit and debit cards including Visa, MasterCard, American Express.
  • Shipping time may vary depending on location. Our shipping usually takes 1-7 days after we process your order.
  • Cost and additional shipping options are available at checkout. We use well known carriers to ensure your order gets to you quickly and securely.
  • Once your order ships, you will receive a shipping confirmation email with tracking information.
Warranty & Returns
  • We accept Apple Pay, Google Pay and all major credit and debit cards including Visa, MasterCard, American Express.
  • Shipping time may vary depending on location. Our shipping usually takes 1-7 days after we process your order.
  • Cost and additional shipping options are available at checkout. We use well known carriers to ensure your order gets to you quickly and securely.
  • Once your order ships, you will receive a shipping confirmation email with tracking information.

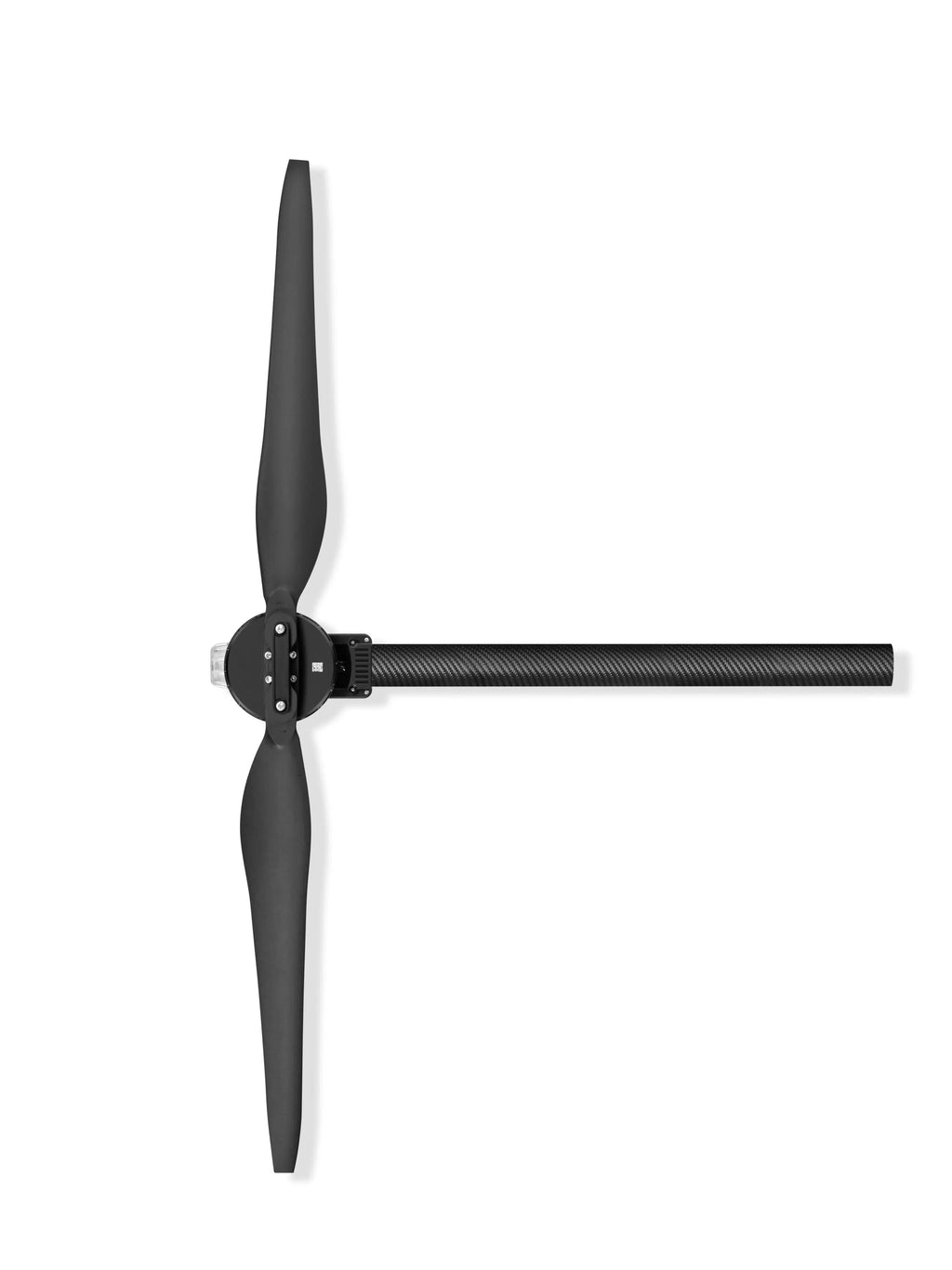

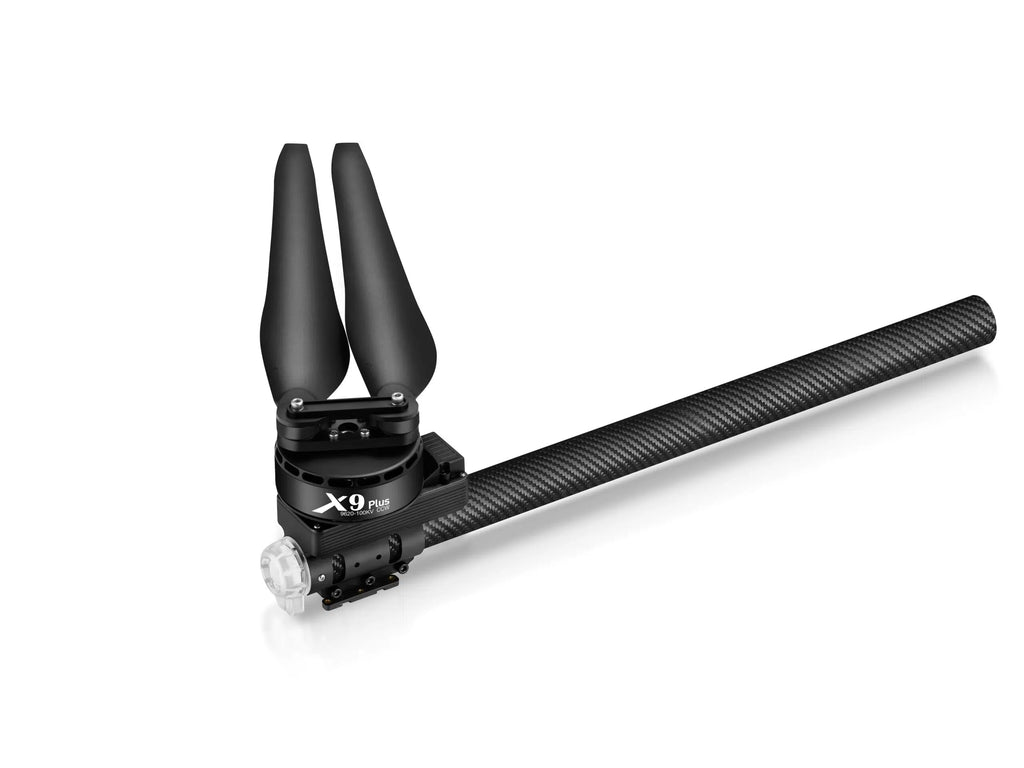

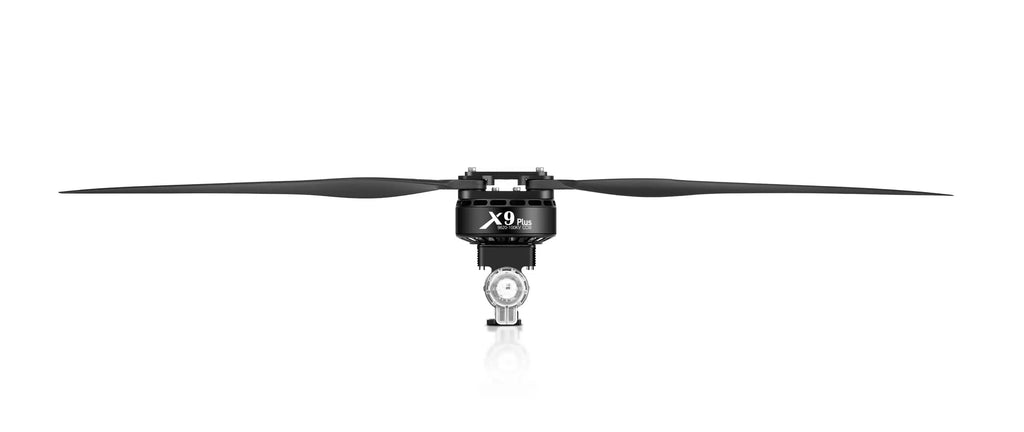

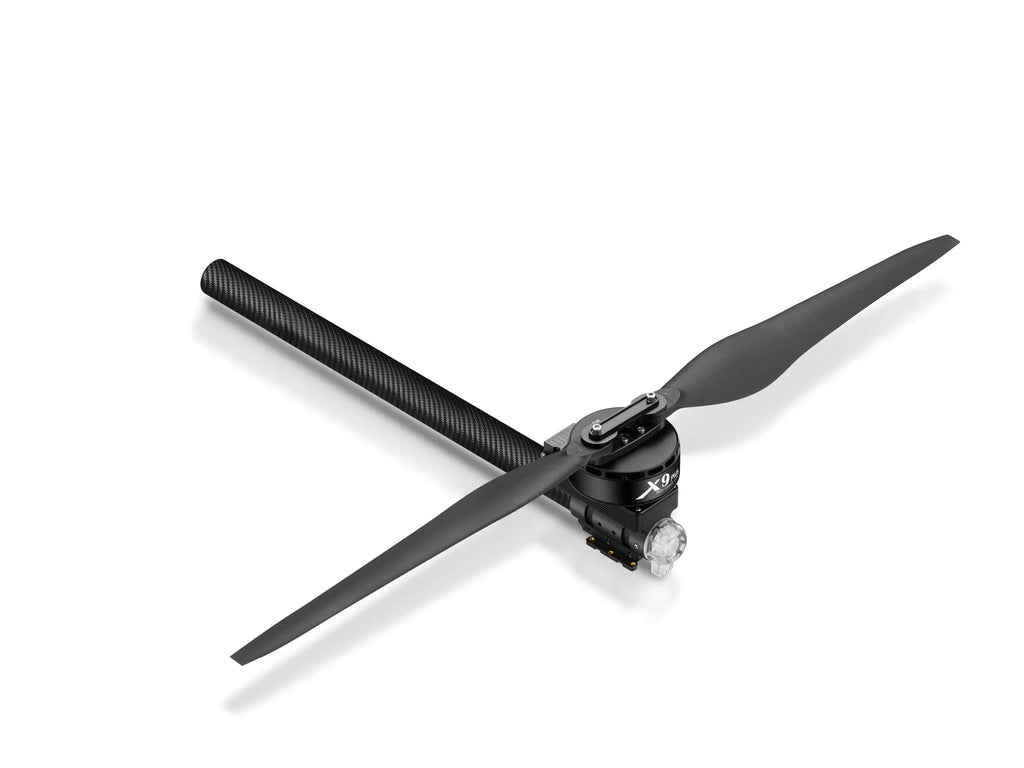

    The CM-X9 Plus-9620-100KV-D40-CW is a high-power integrated propulsion system designed for large multirotors and heavy-lift platforms. Built with a 100 KV motor in the 9620 size and optimized for a 40 mm carbon-tube mount, it delivers exceptional thrust and durability. With features like IPX6/7 waterproofing, a robust cooling design and fully sealed electronics, this system is ideal for industrial drones, aerial spraying, large payload lifting and demanding outdoor work where reliability and performance matter.

    Motor model:9620-100KV
    Tube mount diameter:D40 mm
    Stator size:96×20 mm (or similar, depending version)
    Recommended battery:12-14 S LiPo (depending setup)
    Recommended take-off load per axis:approx. 11-13 kg
    Maximum thrust per axis:up to approx. 27 kg (under ideal conditions)
    Combined system weight:approx. 1760 g (with wiring, depending version)
    Operating temperature:approx. –20 °C to +50 °C
    Waterproof rating:IPX6/7 (sealed for harsh conditions)
    Use case:large multirotors, industrial agriculture drones, heavy-lift payload platforms
